Purpose and scope of application:

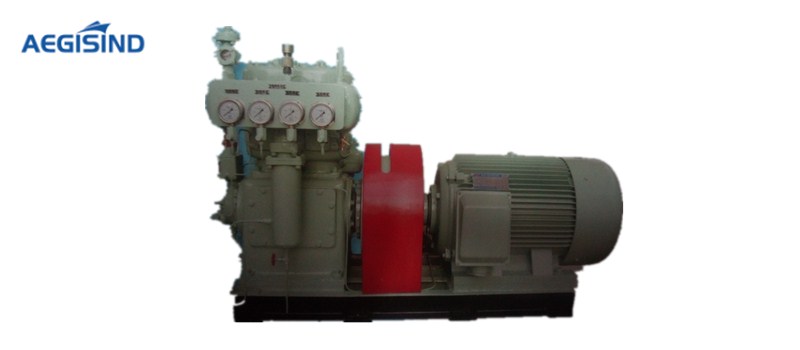

HC-264A air compressor is mainly used to start both the marine and land diesel engines and also as the general compressed air source for pressure test and other high pressure applications.
Structure type:
HC-264A air compressor is vertical air-cooled 2-class compressor
Product
Features:
Features:
cooling perfection, pressure balance, oil pump pressure can be adjusted.
Reliable work under the conditions of a particular ship.
Description: automatic control system can provide according to the customer
request, automatic control functions: automatic start, auto stop, automatic
discharge load, low oil pressure alarm, exhaust temperature high alarm, low
pressure alarm etc..
HC-264A空氣壓縮機主要技術參數
|
壓縮機型號 |
HC-264A |
||
|
型式 |
立式、水冷、二級壓縮 |
||
|
汽缸數 |
2 |
||
|
額定壓力 Mpa |
3 |
||
|
額定轉速 r/min |
730 |
870 |
960 |
|
容積流量 m3/h |
110 |
130 |
145 |
|
軸功率 kw |
26 |
29 |
33 |
|
吸氣濾清方式 |
濾網式 |
||
|
潤滑方式 |
齒輪泵壓力潤滑 |
||
|
曲軸箱容量 L |
15～17 |
||
|
冷卻水量 m3/h |
2～2.8 |
||
|
曲軸旋轉方向 |
逆時針（從飛輪端看） |
||
|
驅動方式 |
直聯轉動 |
||
|
卸荷方式 |
手動卸荷或電磁閥卸荷 |
||
|
型號 |
Y250M-8-H |
Y225S-8-H |
Y250M-6-H |
|
額定功率 kw |
30 |
30 |
37 |
|
額定轉速 r/min |
730 |
870 |
980 |
|
電壓/頻率 V/HZ |
380/50 |
440/60 |
380/50 |
|
機組外形尺寸 mm |
1870×1080×1155 |
||
|
機組重量 kg |
1200 |
||
Placement of Installation and Intake Air
Install the compressor possibly nearest to the site of service. If site of service lines scattered, install the compressor collectively around the center of lead to minimize piping resistance and leakage and save the cost of installation.
Also Please note that well lighted space helps you find earlier leakage and abnormal as well as perform maintenance service smoothly, while Quiet environment enables to detect even a slight abnormal sound, preventing possible troubles.
Ample passage provides and facilities security, disassembly work and maintenance and inspection. At least, space of 1 meter should be reserved around the compressor. In most cases air intake includes dust. It is known by analysis that half of the carbon deposit on the valve is dust. These faulty conditions would cause leakage from cylinder or piston, or malfunction of valve, finally efficiency down and great troubles.
Air Delivery Piping
High temperature rise in delivery pipe line would cause
thermal expansion. Therefore, piping should be installed in such a manner that
it can absorb contraction or expansion.
(1) For this purpose, the use of more than two bends on the midway of pipe line is recommended. Where one piping section is so long, the pipes should be supported with appropriate pipe supports.
(2) Arrange delivery pipe as short as possible.
(3) Stop-valve should not be installed in the midway of delivery pipe. If it is needed to be done, safety valve must be fitted between the compressor and the stop valve. Safety valve used for this purpose should be large enough to release all the Compressed air.
Electric Wiring
Wiring must be installed correctly by qualified engineers or contractors in conformity with applicable codes. Durability and insulation tests should be done carefully while tools and materials used in wiring must meet the requirements of standards. Electrical Motor starting method should be selected according to power facilities of the plant. For details, consult with contractor or our firm.
