Purpose and
scope of application:

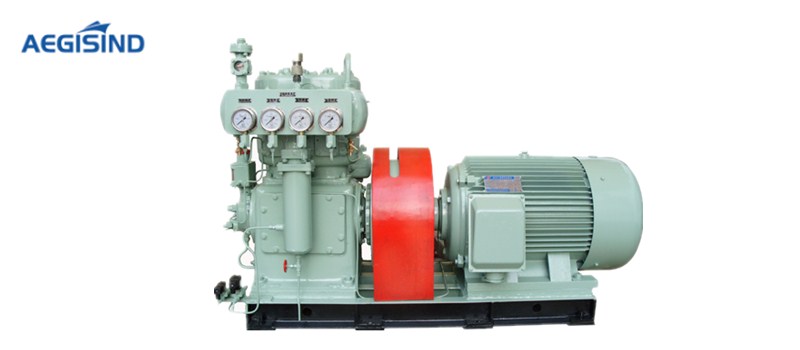

HC-265A air compressor is mainly used to start both the marine and land diesel engines and also as the general compressed air source for pressure test and other high pressure applications.
Structure
type:
HC-265A air compressor is vertical air-cooled 2-class compressor
Product
Features:
Features:
cooling perfection, pressure balance, oil pump pressure can be adjusted.
Reliable work under the conditions of a particular ship.
Description: automatic control system can provide according to the customer
request, automatic control functions: automatic start, auto stop, automatic
discharge load, low oil pressure alarm, exhaust temperature high alarm, low
pressure alarm etc..
|
HC-265A空氣壓縮機主要技術參數 |
||||
|
壓縮機型號 |
HC-265A |
|||
|
汽缸數 |
2 |
|||
|
缸徑 |
一級 |
|
||
|
二級 |
|
|||
|
活塞行程 |
|
|||
|
額定排氣壓力(Mpa) |
|
|||
|
額定轉速(r/min) |
730 |
870 |
960 |
|
|
排氣量(m3h) |
137 |
170 |
190 |
|
|
軸功率(kw) |
31 |
38 |
41 |
|
|
壓縮機凈重 |
～605 |
|||
|
配套電動機 |
型號 |
Y280S-8-H |
Y280M-8-H |
Y280S-6-H |
|
頻率(HZ) |
50 |
60 |
50 |
|
|
額定功率(kw) |
37 |
45 |
45 |
|
|
額定轉速(r/min) |
730 |
870 |
960 |
|
|
額定電壓(V) |
380 |
440 |
380 |
|
|
管徑 |
進出水管 |
25mm |
||
|
排氣管 |
32mm |
|||
|
機組外形尺寸(長×寬×高) |
1870×1000×1180 |
|||
|
機組重量(Kg) |
～1400 |
|||
Placement of Installation and Intake Air
Install the compressor possibly nearest to the site of
service. If site of service lines
scattered, install the compressor collectively around the center of lead to
minimize piping resistance and leakage and save the cost of installation.
Also Please note that well lighted space helps you find
earlier leakage and abnormal as well as perform maintenance service smoothly,
while Quiet environment enables to detect even a slight abnormal sound,
preventing possible troubles.
Ample passage provides and facilities security, disassembly work and maintenance and inspection. At least, space of 1 meter should be reserved around the compressor. In most cases air intake includes dust. It is known by analysis that half of the carbon deposit on the valve is dust. These faulty conditions would cause leakage from cylinder or piston, or malfunction of valve, finally efficiency down and great troubles.
Air Delivery Piping
High temperature rise in delivery pipe line would cause
thermal expansion. Therefore, piping should be installed in such a manner that
it can absorb contraction or expansion.
(1) For this purpose, the use of more than two bends on
the midway of pipe line is recommended. Where one piping section is so long,
the pipes should be supported with appropriate pipe supports.
(2) Arrange delivery pipe as short as possible.
(3) Stop-valve should not be installed in the midway of delivery pipe. If it is needed to be done, safety valve must be fitted between the compressor and the stop valve. Safety valve used for this purpose should be large enough to release all the Compressed air.
Electric Wiring
Wiring must be installed correctly by qualified engineers or contractors in conformity with applicable codes. Durability and insulation tests should be done carefully while tools and materials used in wiring must meet the requirements of standards. Electrical Motor starting method should be selected according to power facilities of the plant. For details, consult with contractor or our firm.
